Ampoule Line

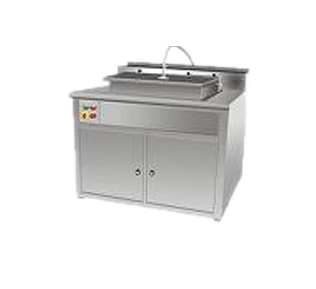

Multi Jet Ampoule Washing Machine
Description :

Multi Jet Ampoule Washing Machine with latest cGMP demand. Machine built in SS-304 with washing capacity of 2 ml to 30 ml Ampoule. The total six washing in one cycle.

Silent Features :

NA Pharmaa Machinery Pvt. Ltd. cGMP Model.
NA Pharmaa Machinery Pvt. Ltd. Both internal & external washing ensuring absolutely & continuous vial after sequential washing.
NA Pharmaa Machinery Pvt. Ltd. Positive & pressurized jets through washing needle for pressure cleaning at minimum usages of washing media.
NA Pharmaa Machinery Pvt. Ltd. Acrylic top cover for clear view of washing events taking place in the machine.
NA Pharmaa Machinery Pvt. Ltd. Sound design concept of pressure tanks for reverses & continuous supply of washing Medias.
NA Pharmaa Machinery Pvt. Ltd. Both Internal and External Washing ensuring absolutely and continuous Vial after sequential washing.
NA Pharmaa Machinery Pvt. Ltd. On-Line polies carbonate housing with P.P. replaceable filter cartridge of 10 microns for water & 5 microns for air for best possible washing. All contact parts of washing media & compressed are of SS-316 or HDPE of poly Carbonate of P.P.

Multi Jet Ampoule Washing Machine
Technical Specification :
Product
:
Ampoule
Multi Jet Needle Quantity
:
350, 240, 180.
Product Range
:
2 ml to 30 ml (Diameter of 14 mm to 60 mm)
Speed
:
60 to 120 Ampoule Per Minute.
Washing Range
:
6 washes
1st Wash D.M. Water                 2nd Wash Air
3rd Wash D.M. Water               4th Wash Air
5th Wash WFI                         6th Wash Air
Consumption
:
12 CFM.
Water Consumption
:
As per titration
Electric Load

1 HP, 3 Phase, 440 Volts, AC, 50 Hz.
Overall Dimension

3 ft x 3 ft x 3 ft ( L x W x H ) or Customize.
Multi Jet Ampoule Washing Machine

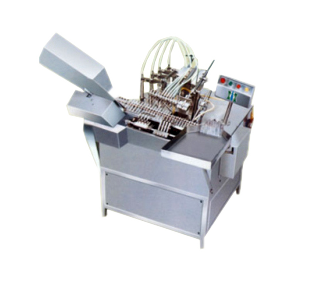

Automatic Ampoule Filling & Sealing Machine
Description :

Automatic Ampoule Filling & Sealing Machine with latest cGMP demand. The machine built on principle of Slant travel of ampoules while filling and sealing to take care of vide variation of ampoule neck dimensions, thickness and ovality of ampoules.

Silent Features :

NA Pharmaa Machinery Pvt. Ltd. Introduce a series of state of art technology Automatic Single Head Filling & Single Head Sealing Machine for performance and cGMP Demanding customers.
NA Pharmaa Machinery Pvt. Ltd. The unit built on S.S. square pipe frame and totally encompassed with S.S. Coverings. In pleasing matt finish, further the large opening available at the bottom side for ease of absolute cleaning.
NA Pharmaa Machinery Pvt. Ltd. The pendant type electrical control panel is lifted from machine for ease of operation and safety.

Automatic Ampoule Filling & Sealing Machine
Technical Specification :
Output Ampoule (1 ml to 10 ml)
:
Single Head - 15   Two Head - 30
Four Head - 80    Six Head - 120
Output Ampoule (10 ml to 30 ml)
:
Single Head - 10   Two Head - 15
Four Head - 60    Six Head - 80
Filling Range
:
1 ml to 10 ml, 10 ml to 30 ml
Rubber Stopper
:
15 mm to 34 mm Diameter.
Electric Load
:
Minimum:0.5 HP,3 Phase,440 Volts,AC,50Hz.
Maximum:3 HP,3 Phase 440 Volts, AC,50 Hz.
Overall Dimension
:
5 ft x 3 ft x 4 ft (L x W x H) or Customize.
Automatic Ampoule Filling & Sealing Machine

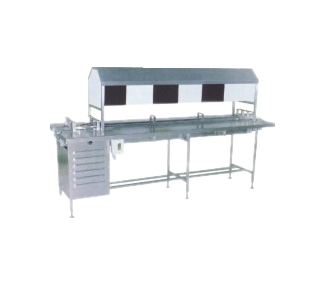

Online Inspection Conveyor
Description :

Online Inspection Conveyor is used in many industries to inspect the filled Ampoule online for suspended particles. It is must for all type of Automatic Liquid Filling Systems. It can be designed as per specific need. It is widely use in Pharmaceutical, Beverages, and Food Products industry.

Silent Features :

NA Pharmaa Machinery Pvt. Ltd. cGMP Model.
NA Pharmaa Machinery Pvt. Ltd. Height: 760 mm Approx. + 50 mm adjustable.
NA Pharmaa Machinery Pvt. Ltd. Length : 2440 mm Approx. (8 feet)
NA Pharmaa Machinery Pvt. Ltd. Width: 915 mm.
NA Pharmaa Machinery Pvt. Ltd. SS both with necessary lights (total 6 seated system (3 x 2) black & white both screen per seat.
NA Pharmaa Machinery Pvt. Ltd. AC Variable drive
NA Pharmaa Machinery Pvt. Ltd. Drive unit (with alignment) to drive the conveying belt.
NA Pharmaa Machinery Pvt. Ltd. Structure made of SS – 304.
NA Pharmaa Machinery Pvt. Ltd. 10 G SQ. Tube structure made from SS – 304.
NA Pharmaa Machinery Pvt. Ltd. Top of SS – 304 supporting guide with divider system.
NA Pharmaa Machinery Pvt. Ltd. Supporting rollers of MS hard chrome plated for drive unit.

Online Inspection Conveyor
Technical Specification :
Product
:
Ampoule
Working
:
8”, 9”, 12” with both sides sitting.
Both Side Arrangements
:
2 x 2, 3 x 3, 4 x 4.
Belt
:
S.S.Chain, Rubber Type.
Length
:
4’, 6’, 8’ (Feet)
Light
:
Flour cent tube light.
Electric Load

Minimum 0.25 HP, Single Phase, 220 Volts.
Maximum 1 HP, Single Phase, 220 Volts.
Gear & Motor

Standard Make.
Online Inspection Conveyor


Automatic Horizontal Sticker Labeling Machine
Description :

Automatic Horizontal Sticker Labeling Machine to stick self adhesive label on Large Ampoule with capacity 1 ml to 30 ml change parts required for different sizes of Ampoule.

Silent Features :

NA Pharmaa Machinery Pvt. Ltd. cGMP Model.
NA Pharmaa Machinery Pvt. Ltd. Structure of SS – 304.
NA Pharmaa Machinery Pvt. Ltd. Convey system to convey the product.
NA Pharmaa Machinery Pvt. Ltd. Imported AC frequency variable drive for variable speed with constant torque.
NA Pharmaa Machinery Pvt. Ltd. Specially designed drive stepper mechanism.
NA Pharmaa Machinery Pvt. Ltd. Dispensing unit to dispense labels.
NA Pharmaa Machinery Pvt. Ltd. Wrap around mechanism to wrap the label on product.
NA Pharmaa Machinery Pvt. Ltd. Reel mechanism (size: 305 mm) to hang the roll.
NA Pharmaa Machinery Pvt. Ltd. Label release mechanism.
NA Pharmaa Machinery Pvt. Ltd. Break assembly to avoid variation during releasing of roll.

Automatic Horizontal Sticker Labeling Machine
Technical Specification :
Product
:
Ampoule 1 ml to 30 ml
Lable Size
:
Maximum : 50 mm x 90 mm (H x L) or Customize.
Speed
:
40 to 120 Ampoule Per Minute
A.C. Drive
:
A.C. 0.25 HP, Make Allen Bradley / ABB.
Motor
:
AC Motor Make Bonfigioli
Electric Load

1HP, Single Phase, 220 Volts, AC, 50 Hz.
Compressed Air

2 to 4 Kg / Cm2 (for printing attachment)
Automatic Horizontal Sticker Labeling Machine
